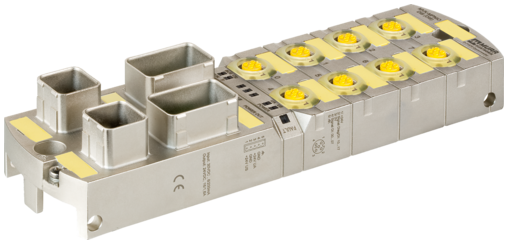

MVK-MPNIO F DI16/8

MVK PROFINET/PROFIsafe module compact en métal
No.d'art.: 55562
Poids: 0.98 kg
Pays d'origine:  DE
Livrable de suite.
 Comparaison produit
Prix tarif unitaire:
  • 1.022,01 €
  • 1.001,16 €
  • 980,30 €
  • 938,58 €
  • 886,44 €
  • 834,30 €
Télécharger dans Easy-Import-Export

Description

Entrées sécurisées jusqu'à la cat 4/PLe (EN ISO 13849-1), jusqu'à SIL 3 (IEC 61508), jusqu'à SILCL 3 (IEC 62061)
FDI16/8 (IRT)
Ethernet 10/100 Mbit/s; Connecteur de données RJ45 Push Pull
Connecteur de puissance Push Pull, max. 12 A
M12, 5 pôles, codage A
Certificate
Certificate
Certificate
Certificate
Technologies de bus
Technologies de bus

Caractéristiques générales
Mode de fixation Fixation par vis à 2 trous
Plage de température -20...+55 °C (temp. de stockage - 40...+70 °C)
Degré de protection IP67
Dimensions H×L×P 44×63×225 mm
Diagnostic
État de communication par LED
Diagnostic par BUS par module et canal
Diagnostic par LED par module et canal
Alerte actionneur par canal par LED et BUS
Surveillance - tension insuffisante oui
Surveillance - absence de tension oui
Court-circuit et surcharge oui
Détection croisée Capteur/Actionneur
Détection de rupture de câble oui
PROFINET
Specification V2.2, Conformance Class C (IRT)
Adressage DCP
MRP oui
Shared Device oui, pour 2 contrôles
Branchements
Bus de terrain Ethernet 10/100 Mbit/s; Connecteur de données RJ45 Push Pull
Alimentation capteur-système/actionneur Connecteur de puissance Push Pull, max. 12 A
Emplacements d’E/S M12, 5 pôles, codage A
Indicateurs de sécurité
DC 98%
Durée d'utilisation 20 ans
Catégorie jusqu'à 4
PFH 1.70E-9
PL jusqu'à e
SIL CL jusqu'à 3
SIL jusqu'à 3

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
EAN 4048879454209
Numéro du tarif douanier 85389099
Unité de conditionnement 1


Données relatives à l'article :
  • Téléchargement PDF du produit
  • Téléchargement Autorisation: UL Listed CA 55562_E201820-NRAQ7_ulc_z_a.pdf
  • Téléchargement Autorisation: UL Listed US 55562_E201820-NRAQ_ul_z_a.pdf
  • Téléchargement Certificat: ProfiNet  55562_Z10713-feb16-oct18-MVK-MPNIO-F-v2.2_pn_z_c.pdf
  • Téléchargement Certificat: TÜV  55562_01-205-5408-03-22-05.04.2027_tuev_z_d.pdf
  • Téléchargement Description du dispositif: GSDML 55562_MVK_F_KF0_x_13.zip
  • Téléchargement Document: Manuel d'instruction 55563_hdb_x_24.zip
  • Téléchargement Document: Notice d'installation 55562_ina_x_19.zip
  • Téléchargement fichier de construction: DXF 55562_dxf_x_a.zip
  • Téléchargement fichier de construction: P8 55562_p8_2_60.zip
  • Téléchargement fichier de construction: STP 55562_stp_x_a.zip
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Téléchargement Information: Déclaration de conformité UKCA 55562_07-04.22_uk_z_c.pdf
  • Téléchargement Information: EU Déclaration de conformité 55562_07-04.22_ce_z_e.pdf
  • Téléchargement Information: Safety Codes 55557_SISTEMA_TB9_x_22.zip
  • Téléchargement Software: Firmwareupdatetool 10500955_AutoUpdateX_TB3_x_31.zip
  • Téléchargement Software: Safety-configurateur 10500984_MVKSafety Configurator_TB1_x_42.zip
