MO1D-TR2D2/001  52512
Photo non contractuelle

MO1D-TR2D2/001

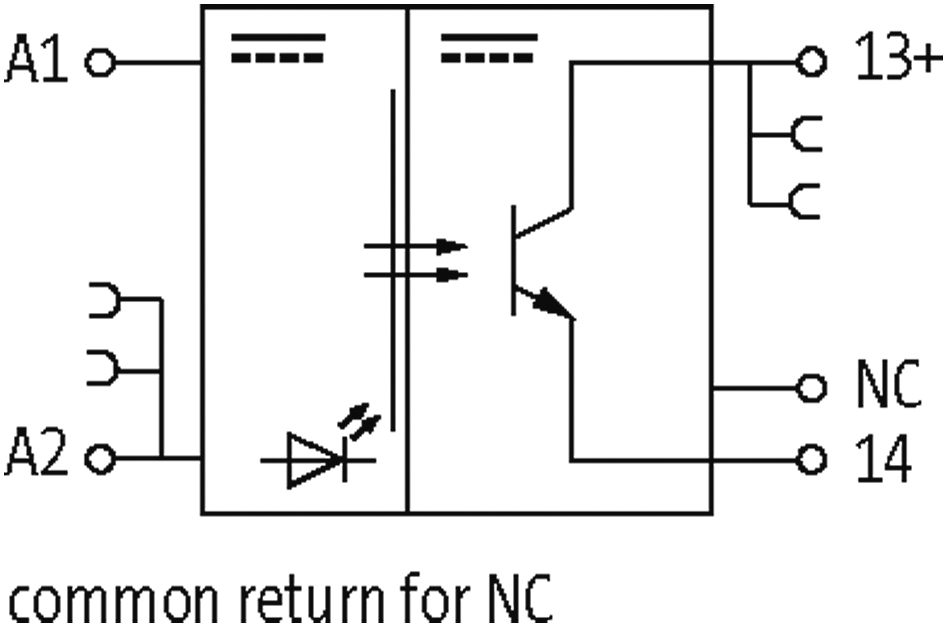

Module-optocoupleur, 24 V DC, transistor, 0...44 V DC, 0...3 V DC
No.d'art.: 52512
Produit alternatif:    6652512
Poids: 0.03 kg
Pays d'origine:  CZ
Article épuisé - Contactez-nous pour connaître la disponibilité
 Comparaison produit
Prix tarif unitaire:
  • 43,46 €
  • 42,58 €
  • 41,69 €
  • 39,92 €
  • 37,70 €
  • 35,48 €
Télécharger dans Easy-Import-Export

Description

Transistor 2 A
24 V DC
Limitation du courant de commutation
avec borne à point d’appui
Bornes à vis
Certificate
Certificate
Certificate
Certificate

Entrée
Courant de commande 6 mA
Plage de tensions ARRÊT 0...5 V DC
Plage de tensions MARCHE 10...53 V DC
Indicateur à LED LED (jaune)
Sortie
Courant résidueIle (sortie non activée) max. 0.1 mA
Temps de commutation MARCHE/ARRÊT 5/10 ms
Tension résidueIle (si sortie activée) max. 0.35 V DC
Tension de commutation 5...48 V DC
Fréquence de commutation max. 10 Hz
Courant commuté par sortie 1 mA...2 A (protection contre les surcharges)
Caractéristiques générales
Mode de fixation à enclipser sur rail DIN (EN 60715)
Plage de température -20...+60 °C
Tension d’isolation d’essai 2.5 kV
Coffret Plastique noir, difficilement inflammable
Dimensions H×L×P 91×6.2×71 mm

ECLASS-6.0 27371604
ECLASS-6.1 27371604
ECLASS-7.0 27371604
ECLASS-8.0 27371604
ECLASS-9.0 27371604
ECLASS-10.1 27371604
ECLASS-11.1 27371604
ECLASS-12.0 27371604
ETIM-5.0 EC001504
EAN 4048879026840
Numéro du tarif douanier 85414900
Unité de conditionnement 1


Données relatives à l'article :
  • Téléchargement PDF du produit
  • Téléchargement Autorisation: CSA CA 52512_080128-0-000_C3211-07_csa_z_b.pdf
  • Téléchargement Autorisation: CSA US 52512_080128-0-000_C3211-07_csau_z_a.pdf
  • Téléchargement Autorisation: UL Registered CA 52512_E140415-NKCR8_urc_z_d.pdf
  • Téléchargement Autorisation: UL Registered US 52512_E140415-NKCR2_ur_z_d.pdf
  • Téléchargement fichier de construction: DXF 52000_dxf_x_a.zip
  • Téléchargement fichier de construction: P8 52512_p8_2_60.zip
  • Téléchargement fichier de construction: STP 52000_stp_x_a.zip
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Téléchargement Information: Déclaration de conformité UKCA 52512_1532-04.16_uk_z_a.pdf
  • Téléchargement Information: EU Déclaration de conformité 52512_1532-04.16_ce_z_c.pdf
  • Téléchargement Information: MTTF rapport 52512_SN29500(40°C)-BerechnungV1.4_mttf_p_c.pdf
