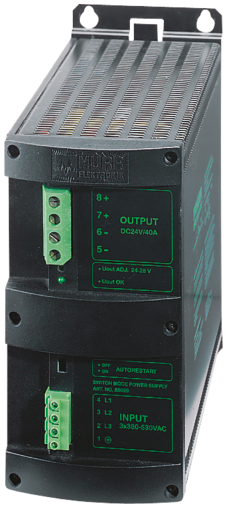

MCS 40- 3 x 400...500 /24 (PFC)

Alimentation triphasée, à découpage au primaire, 3 x 400-500 V AC, 24
No.d'art.: 85099
Produit alternatif:    85004
Poids: 4.5 kg
Pays d'origine:  CZ
Livrable de suite.
 Comparaison produit
Prix tarif unitaire:
  • 627,60 €
  • 614,79 €
  • 601,99 €
  • 576,37 €
  • 544,35 €
  • 512,33 €
Télécharger dans Easy-Import-Export

Description

INPUT: 3× 360...550 V AC
OUTPUT: 24...28 V DC
Courant: 40 A
Certificate
Certificate
Certificate
Certificate
Certificate
Certificate

Entrée
Tension d’entrée 3× 360...550 V AC
Fusible externe au primaire max. 3× 4 A
Courant d’entrée 3× 1.7 A
Inrush surtension après 1 ms max. 4 A
Fréquence 50...60 Hz
Sortie
Tension de sortie 24 V DC (SELV), ±1% ; réglable 24...28 V
Indicateur à LED LED (verte) pour tension de sortie
Caractéristique de coupure sélectionnable cavaliers enfichables en face avant (redémarrage automatique ou arrêt définitif)
Courant de sortie 40 A (+60 °C); 46 A (+40 °C)
Contournement de panne secteur max. 8 ms (440 V AC)
Ondulation résidueIle max. 20 mV eff/rms
Pointes max. 150 mV ss/pp
Protection de l'appareil protection anti court-circuit et surcharge
Fonctionnement en parallèle/en série max. 5 unités/max. 2 unités
Caractéristiques générales
Normes IEC 61010-2-201, EN 61204-3, EN 55022 B
Mode de fixation Fixation par 4 is M4, dans rectangle 81×230 mm
Plage de température 0...+60 °C (temp. de stockage -25...+85 °C)
Humidité reIative 5...95%, sans condensation
Rendement 91%
Dimensions H×L×P 242×106×270 mm

ECLASS-6.0 27049002
ECLASS-6.1 27049002
ECLASS-7.0 27049002
ECLASS-8.0 27049002
ECLASS-9.0 27040701
ECLASS-10.1 27040701
ECLASS-11.1 27040701
ECLASS-12.0 27040701
ETIM-5.0 EC002540
EAN 4048879080460
Numéro du tarif douanier 85044083
Unité de conditionnement 1


Données relatives à l'article :
  • Téléchargement PDF du produit
  • Téléchargement Autorisation: CSA CA 85099_080128-0-000-C3211-07_csa_z_a.pdf
  • Téléchargement Autorisation: CSA US 85099_080128-0-000-C3211-87_csau_z_a.pdf
  • Téléchargement Autorisation: EAC 85099_ЕАЭС RU С-DE.АБ53.В.03597-2027.02.14_eac_z_b.pdf
  • Téléchargement Autorisation: UL Listed CA 85099_E196712_NKCR7_ulc_z_b.pdf
  • Téléchargement Autorisation: UL Listed US 85099_E196712-NKCR_ul_z_c.pdf
  • Téléchargement Autorisation: UL Registered CA 85099_E213413-QQGQ8_urc_z_c.pdf
  • Téléchargement Autorisation: UL Registered US 85099_E213413-QQGQ2_ur_z_c.pdf
  • Téléchargement Document: Notice d'installation 85099_ina_4_16.pdf
  • Téléchargement fichier de construction: DXF 85099_dxf_x_a.zip
  • Téléchargement fichier de construction: STP 85099_stp_x_a.zip
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Téléchargement Information: Déclaration de conformité UKCA 85099_46-10.20_uk_z_a.pdf
  • Téléchargement Information: EU Déclaration de conformité 85099_46-10.20_ce_z_c.pdf
  • Téléchargement Information: MTBF rapport 85099_SN29500(40°C)-BerechnungV1.4_mtbf_p_a.pdf
