Emparro HD 10-100-240/24

No.d'art.: 85449
Poids: 1.487 kg
Pays d'origine:  CZ
Livrable de suite.
 Comparaison produit
Prix tarif unitaire:
  • 343,31 €
  • 325,24 €
  • 307,17 €
  • 271,04 €
Télécharger dans Easy-Import-Export

Description

INPUT: 90...265 V AC/90...370 V DC
OUTPUT: 24 V DC
Courant: 10 A
Degré de protection IP20
Conception robuste
Certificate
Certificate
Certificate

Entrée
Tension d’entrée 90...265 V AC/90...370 V DC
Courant d’entrée 1.2 A (240 V AC)
Inrush surtension après 1 ms max. 7 A (240 V AC)
Facteur de puissance 0.91 (230 V AC)
Fréquence 50...60 Hz
Fusible d'entrée (intérieur) 6.3 A (T)
Sortie
Tension de sortie 24 V DC (SELV), ±1% ; réglable 24...28 V
Power Boost 15 A (min. 5 s)
Indicateur à LED LED (verte) : OK ; LED (rouge) : Surcharge, surchauffe ou court-circuit
Courant de sortie 10 A
Contournement de panne secteur min. 35 ms (100 V AC); 10 A (24 V DC)
Ondulation résidueIle max. 30 mV eff/rms
Pointes max. 300 mV ss/pp
Protection de l'appareil protection anti court-circuit et surcharge
Fonctionnement en parallèle/en série max. 3 unités/max. 2 unités
Caractéristiques générales
Normes IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
Mode de fixation Fixation par vis à 6 trous
Plage de température -40...+50 °C, ...+80 °C derating (temp. de stockage -40...+85 °C)
MTBF 1 000 000 h
Humidité reIative 5...95%, sans condensation
Degré de protection IP20
Rendement 93.5% (115 V AC); 94.2% (230 V AC)
Type de raccordement Bornes à ressort

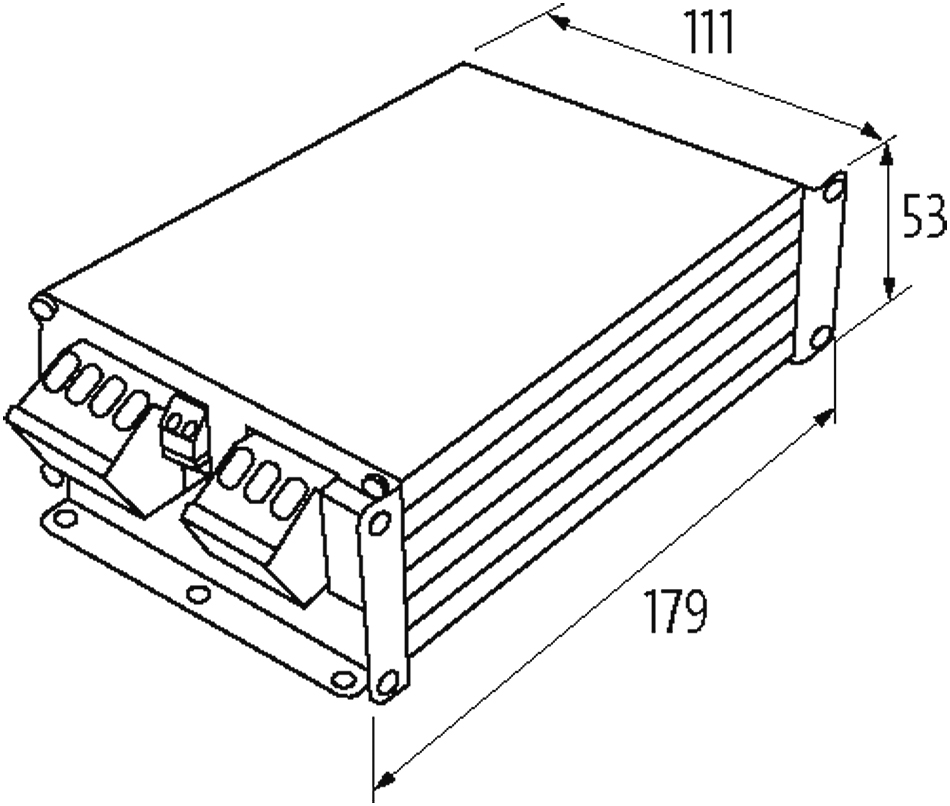

Dimensions H×L×P 179×111×53 mm

ECLASS-6.0 27049002
ECLASS-6.1 27049002
ECLASS-7.0 27049002
ECLASS-8.0 27049002
ECLASS-9.0 27040701
ECLASS-10.1 27040701
ECLASS-11.1 27040701
ECLASS-12.0 27040701
ETIM-5.0 EC002540
EAN 4048879641111
Numéro du tarif douanier 85044095
Unité de conditionnement 1


Données relatives à l'article :
  • Téléchargement PDF du produit
  • Téléchargement Autorisation: UL Listed US 85449_E200364-NMTR_ul_z_b.pdf
  • Téléchargement Certificat: CB  85449_FIMKO CB FI-33379_cb_z_a.pdf
  • Téléchargement Document: Notice d'installation 85449_ina_10_13.pdf
  • Téléchargement fichier de construction: DXF 85449_dxf_x_a.zip
  • Téléchargement fichier de construction: P8 85449_p8_2_50.zip
  • Téléchargement fichier de construction: STP 85449_stp_x_a.zip
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Téléchargement Information: Déclaration de conformité Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Téléchargement Information: Déclaration de conformité UKCA 85449_14-10.20_uk_z_a.pdf
  • Téléchargement Information: EU Déclaration de conformité 85449_14-10.20_ce_z_b.pdf
  • Téléchargement Information: MTBF rapport 85449_SN29500(40°C)-Berechnung_mtbf_p_a.pdf
